Introduction
Product Description
Section titled “Product Description”- XpressReal is a family of Single Board Computers developed in collaboration between Fyde Innovations, Radxa and Realtek.
- XpressReal T3 is the first product in the family - a small form factor high performance single board computer powered by the Realtek RTD1619B, which runs FydeOS/openFyde and Linux!
- Equipped with a Quad-core Cortex-A55 processor, up to 4GB LPDDR4x memory and 32GB eMMC.
- Support 4K HDMI output, WiFi6 + BT 5.4, onboard USB3.0, M.2 2280 SSD and 40-pin GPIO interface.
- USB-C PD and GbE with Passive PoE power supply support.

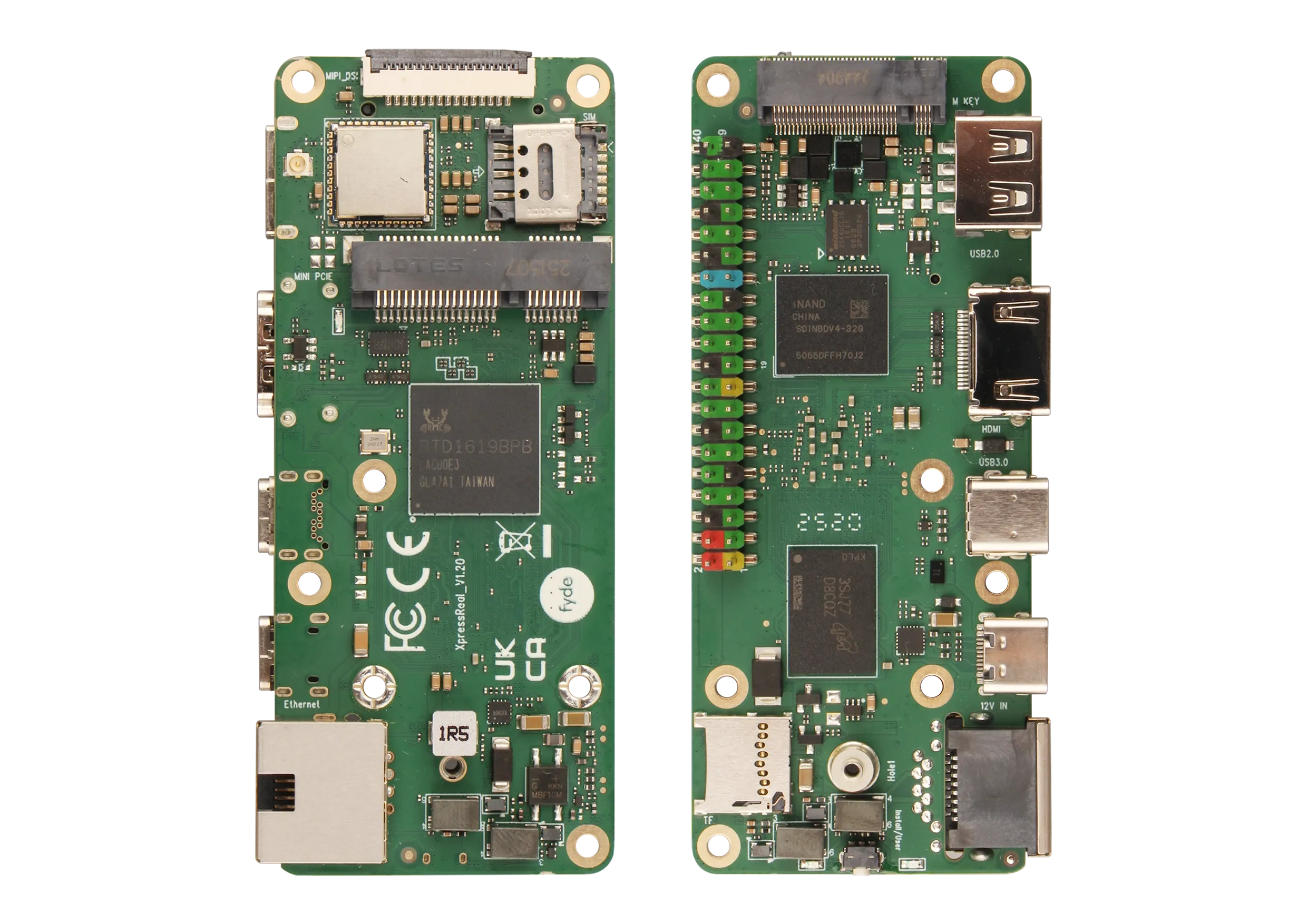

Photos
Section titled “Photos”
Features
Section titled “Features”| Model | XpressReal T3 | |
| SoC | Realtek RTD1619B | |
| CPU | Quad-core ARM Cortex-A55, Up to 1.7GHz | |
| GPU | ARM Mali-G57 MP1, Vulkan 1.1, OpenGL ES 3.2, OpenCL 2.0. | |
| NPU | 1.6 TOPS | |
| RAM | LPDDR4 3200Mbps, 4GB | |
| ROM |
4MB SPI Flash Onboard eMMC: 32 GB microSD card slot M.2 NVMe SSD slot (M-Key) |
|
| Display | HDMI 2.1a 4K@60Hz, HDMI CEC, ARC/eARC, HDCP support MIPI DSI |
|
| Wireless | WIFI 6 + BT 5.4 Mini PCIe (AP/4G LTE) |
|
| USB | 1× USB Type-C 3.2 Gen1 1× USB Type-A 2.0 |
|
| Other | 40-Pin Header | |
| Power supply |
USB-C PD GbE with Passive PoE (24V 1A) |
|
| Size | 96mm x 40mm | |

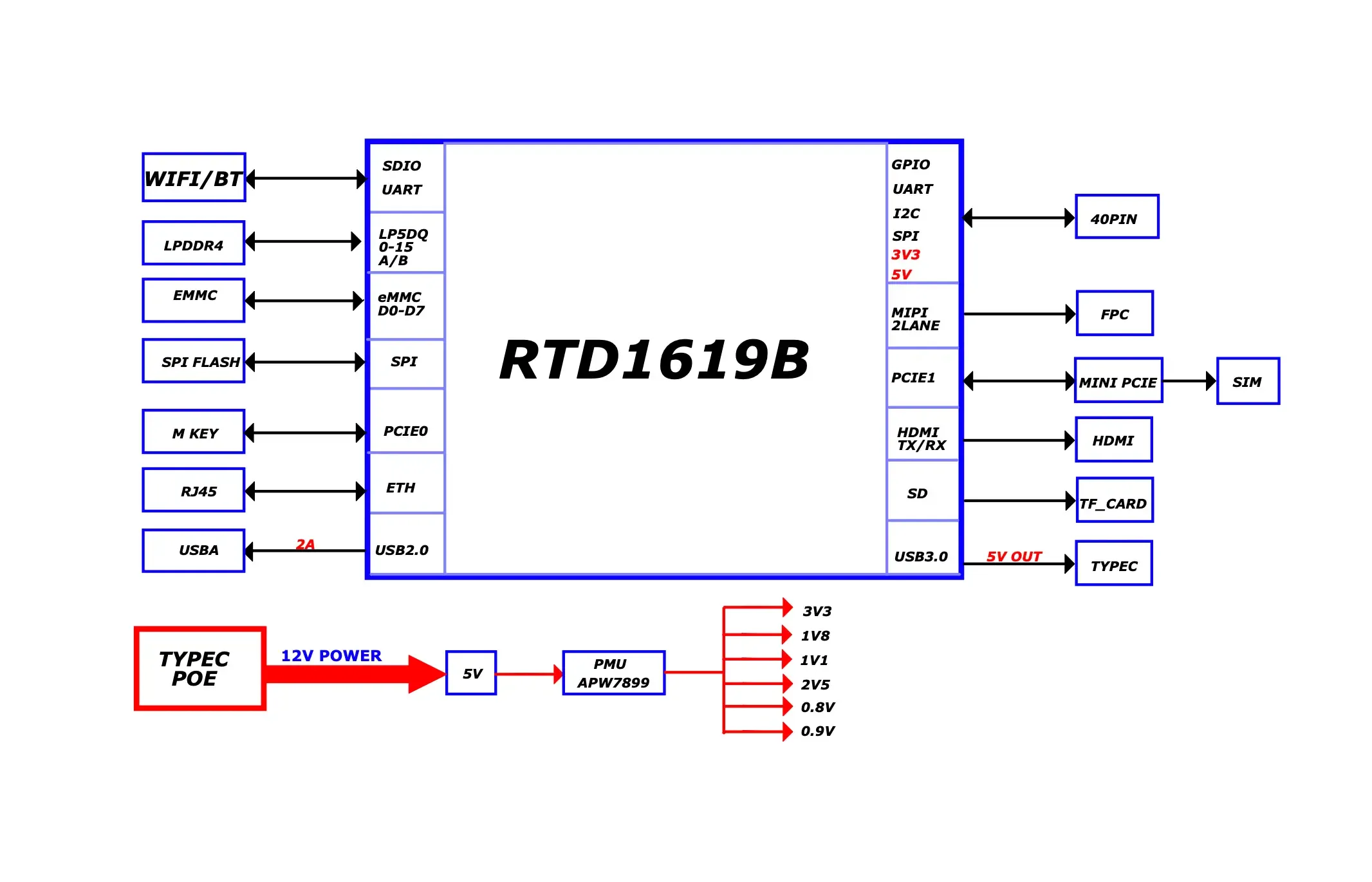

System Block Diagrams
Section titled “System Block Diagrams”
